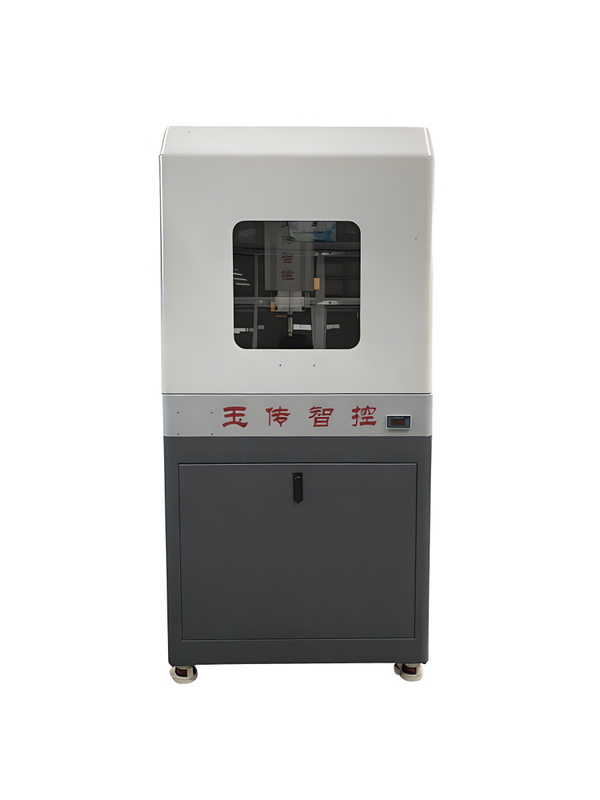

The YH40-40XS is a cutting-edge 4-axis engraving machine designed and manufactured by Anhui Yuhan Numerical Control Technology Co., Ltd., a leading enterprise in the CNC machinery industry since 2014.
| Availability: | |
|---|---|
| Quantity: | |
This high-performance equipment integrates advanced technology and robust construction to deliver precise and efficient engraving solutions for various materials. With its automatic operation and superior customization options, the YH40-40XS stands out as a versatile tool for both industrial production and craft manufacturing, catering to the diverse needs of professionals seeking reliability and accuracy in their engraving processes.
Parameter | Details |
Model NO. | YH40-40XS |
Machine Type | Four-Axis |
Application Material | acrylic/stone/jade/wood/aluminum/copper |
Automation | Automatic |
Working Size (Relief) | 360330130 MM |
Working Size (3D) | 180*140 MM |
Motor Power | High Power |
Motor Driver | Stepper motor driver (Chinese servo motor and Japan servo motor optional) |
Current | AC |
Voltage | 380V / 220V |
Customized | Customized |
Reposition Precision | 0.02mm |
Operation System | WEIHONG NK105 G3 |
Command | NC/ENG |
Water Cooling Spindle Power | 1.5kw/2.2kw |
Spindle Speed | 0-24000rpm |
Tool Diameter | 3.175、4、6mm |
Relative Humidity | 30%-75% |
Running Environment Temperature | 0-45ºC |
XYZ Rails | Square Rails |
A-Axis | Reduction gear |
Dust-proof System | X/Y/Z high quality dust cover |
Mechanical Accuracy | 0.03/300mm |
Support Format | NC / ENG |
Working Voltage | AC220V/50Hz or 380V/50Hz |
Machine Size | 7609001620 MM |
Net Weight | 340 KG |
Equipped with a water cooling system, the YH40-40XS effectively regulates the temperature of the cutter during prolonged operation. This not only ensures the cutter maintains its sharpness but also significantly extends its service life, reducing replacement costs and downtime for users.
The machine boasts a breakpoints and power failure continued carving function. This means that in the event of unexpected power outages or operational pauses, the YH40-40XS can resume engraving from the exact point it stopped, eliminating the need to restart the entire process and saving valuable time and materials.
A specialized dust oiling structure is integrated into the YH40-40XS, providing comprehensive protection to the mechanical components. This design effectively prevents dust and debris from affecting the machine's performance, ensuring stable and reliable operation over the long term, even in harsh working environments.
The main configuration of the YH40-40XS selects imported and joint venture brand components. This careful selection of parts guarantees stable and reliable performance, minimizing the risk of breakdowns and ensuring consistent engraving quality. Optional servo motors from China and Japan further allow users to tailor the machine to their specific performance requirements.
The machine body adopts an industrial production model with a heavy all-steel welded structure. Undergoing tempering aging treatment, this structure exhibits exceptional strength and resistance to deformation, ensuring the YH40-40XS remains durable and precise even after years of intensive use.
The YH40-40XS is highly versatile, capable of handling a wide range of materials including acrylic, stone, jade, wood, aluminum, and copper. This makes it suitable for various industries and craft applications.
In the signage industry, it can precisely engrave acrylic to create high-quality signs. For the jewelry and jade processing sector, its high precision ensures intricate designs on jade and other precious materials. Woodworkers can utilize it for detailed relief carvings on wooden furniture or artworks. Additionally, it finds use in the metalworking industry for engraving patterns or markings on aluminum and copper components.
The YH40-40XS supports AC220V/50Hz or 380V/50Hz, providing flexibility to adapt to different power supply environments.
It supports NC / ENG formats, which are widely used in CNC engraving processes, ensuring compatibility with most design software.
The reposition precision is 0.02mm, ensuring accurate and consistent results even when multiple engraving steps are involved.
Yes, the YH40-40XS offers customization options, allowing users to select components such as servo motors based on their specific needs.
The spindle speed can be adjusted from 0 to 24000rpm, enabling efficient engraving on different materials with varying hardness.
