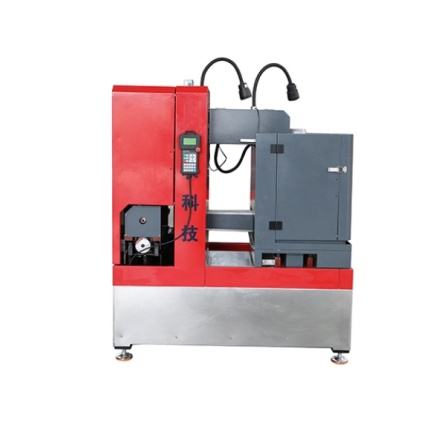

The YH40-40P is a high-performance 3-axis engraving machine manufactured by Anhui Yuhan Numerical Control Technology Co., Ltd., a reputable modern science and technology enterprise with expertise in research, development, production, and service since 2014. This advanced machine is designed to deliver exceptional precision and efficiency in various engraving tasks.
| Availability: | |
|---|---|
| Quantity: | |
Featuring a heavy all-steel welded structure subjected to tempering aging treatment, the YH40-40P offers remarkable stability and non-deformation, ensuring long-term durability even in intensive industrial use. Equipped with high-quality components, including options for Chinese or Japanese servo motor drivers, it stands out as a versatile solution for professionals seeking reliable engraving performance across a wide range of materials.
Parameter | Details |
Model NO. | YH40-40P |
Application Material | acrylic/stone/jade/wood/aluminum/copper |
Automation | Automatic |
Motor Power | High Power |
Current | AC |
Voltage | 380V /220V |
Customized | Customized |
Reposition Precision | 0.02mm |
Operation System | WEIHONG NK105 G3 |
Command | NC/ENG |
Water Cooling Spindle Power | 1.5kw/2.2kw |
Spindle Speed | 0-24000rpm |
Machine Type | Three-Axis |
Working Size | 380380130 MM |
Motor Driver | Stepper motor driver (Chinese servo motor and Japan servo motor is optional) |
Tool Diameter | 3.175、4、6mm |
Relative Humidity | 30%-75% |
Running Environment Temperature | 0-45ºC |
XYZ Rails | Square Rails |
Dust-proof System | X/Y/Z high quality dust cover |
Mechanical Accuracy | 0.03/300mm |
Support Format | NC / ENG |
Working Voltage | AC220V/50Hz or 380V/50Hz |
Machine Size | 760 900 1620 MM |
Net Weight | 270 KG |
A water cooling system is integrated into the YH40-40P, which plays a crucial role in maintaining the optimal temperature of the cutter during operation. This not only ensures the cutter has a long service life but also guarantees consistent engraving quality even during extended working hours.
The machine is equipped with a breakpoints and power failure continued carving function. This means that in the event of unexpected power outages or interruptions, the machine can resume the engraving process from where it left off, minimizing material waste and saving valuable time.
The dust oiling structure effectively protects the mechanical components, ensuring their smooth operation over a long period. This feature significantly reduces the need for frequent maintenance and enhances the overall reliability of the machine.
Main configurations of the YH40-40P select import and joint venture brand components. This choice of high-quality parts contributes to the stable and reliable performance of the machine, making it suitable for demanding industrial applications.
The machine body adopts an industrial production model with a heavy all-steel welded structure. Through tempering aging treatment, it achieves strong non-deformation, ensuring durability and consistent performance even after years of use.
The YH40-40P is highly versatile and can handle a variety of materials. It excels in engraving acrylic, producing precise and smooth designs for signage, displays, and decorative items. For stone and jade, the machine's high precision allows for intricate carvings, making it ideal for creating jewelry, artworks, and cultural relic replicas.
When it comes to wood, the YH40-40P can craft detailed patterns and shapes, suitable for furniture decoration, wooden crafts, and musical instrument components. It also performs well with aluminum and copper, enabling the production of metal parts, nameplates, and industrial prototypes.
In the crafts industry, this machine is a valuable tool for creating unique and elaborate handicrafts. The advertising industry benefits from its ability to engrave acrylic and other materials for making signs and displays.
In the woodworking industry, it aids in producing customized wooden products. Additionally, the jewelry and accessories industry relies on its precision to create intricate designs on jade and metal materials.
The reposition precision of the YH40-40P is 0.02mm, ensuring high accuracy in repeated engraving tasks.
Yes, the YH40-40P offers customization options to meet specific user requirements, including choices of motor drivers.
The spindle speed of the machine ranges from 0-24000rpm, providing flexibility for different engraving materials and techniques.
The YH40-40P operates on the WEIHONG NK105 G3 system, which is user-friendly and efficient for controlling the engraving process.
The working voltage can be either AC220V/50Hz or 380V/50Hz, allowing it to be used in various electrical environments.
Yes, the machine is equipped with an X/Y/Z high quality dust cover as part of its dust-proof system, protecting internal components from dust and debris.
